Graphite Sulphuric Acid Dilution Unit

About Graphite Sulphuric Acid Dilution Unit

With an aim to introduce world class product range, we provide our patrons premium quality Graphite Sulphuric Acid Dilution Unit. Our team of skilled professionals manufactures these dilution units using best grade raw materials that enhance their performance and make these suitable for both dilution as well as cooling of acid. Designed with latest production technologies, these dilution units are widely demanded in chemical industry. This Graphite Sulphuric Acid Dilution Unit is highly acknowledged for its following attributes:

• Reliable performance

• High productivity

• Thermal shock resistant

• Easy to dismantle

Other Information:

Our clients can avail from us the precision engineered graphite sulfuric acid dilution unit that is design and developed using superior quality raw material and advanced manufacturing technologies. It is simultaneously beneficial for both dilution as well as cooling of acid. The unit is high in performance and can withstand various adverse working conditions

Diluting concentrated sulphuric acid releases, considerable quantities of heat with mixing temperature up to 160c and above, it is therefore beneficial to dilute and cool acid simultaneously.

This can be accomplished in a single operation with graphite block type dilution cum cooling unit, unit consists of mixing head, which provides separate feed for concentrated sulphuric acid and dilution water. Block type cooling unit provided along with it serves to carry off the heat produced in the course of dilution.

The water and acid are combined only in mixing -chamber, from here dilute acid flows through " process channels of the process blocks, these process channels comes indirectly in contact with the service channels through impermeable graphite and using its high thermal conductivity, as a result desired temperature of dilute acid is obtained at outlet.

Using this design, we can get desired state of concentration and temperature of the dilute acid from the acid outlet of the sulphuric acid dilution unit.

Features of sulphuric acid dilution unit

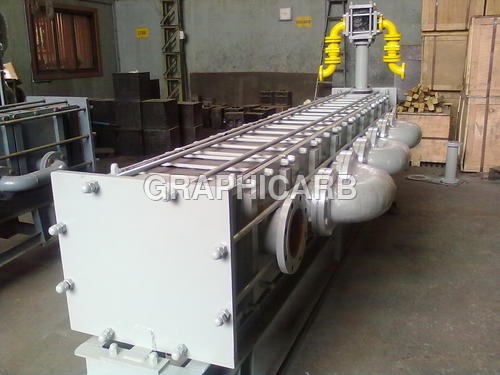

• Skid mounted unit consists of graphite mixing unit, graphite after cooler, graphite inter connecting pipes, ptfe lined NRV and bends

• Simple robust and easy to install tough construction.

• Multiple passes can be provided on service sides. .

• Graphite has high compressive strength so metal plate apply compressive load on graphit

• Flexibility of adding more blocks to increase heat transfer area.

• Easy cleaning because of short channels.

• Short channel lengths increases turbulence as a result avoids frequent deposits or fouling as compared to shell & tube type heat exchanges of same dimensions, cubical block type heat exchanger provides 2 to 5 times more heat transfer.

• Working conditions : Upto 5kg / cm2 pressure.

Superior Corrosion Resistance

The impervious graphite composition offers outstanding durability against the harsh effects of concentrated and dilute sulphuric acid. Its non-porous, chemically resistant nature makes it a reliable choice for demanding process environments, ensuring a longer service lifespan and minimal maintenance.


Efficient Thermal Performance

Engineered for high thermal conductivity, the unit enables highly effective heat transfer during sulphuric acid dilution. This characteristic is crucial in preventing hotspots, maintaining optimal process conditions, and enhancing overall system efficiency in chemical industries.


Precision Engineering and Leak-Proof Design

With a carefully machined surface and integrated construction, the unit allows for precise installation and a completely leak-proof operation. This meticulous engineering ensures process safety, reduces the risk of hazardous leaks, and meets stringent industrial standards.
